As transient events, it is vital to make all the necessary observations at the time of the event, since it is impossible to obtain the data later on. If the sometimes-subtle anomalies are not identified until a later stage, it can make the analysis challenging. One such case was MOA-2010-BLG-353L, which is described in Rattenbury, N. et al. (2015), MNRAS, 454, 946.
The paper outlines an alternative approach to inferring the nature of the lensing system which can be applied under these circumstances.

Use the methods outlined in estimating parameters to derive approximate values for the microlensing model parameter.

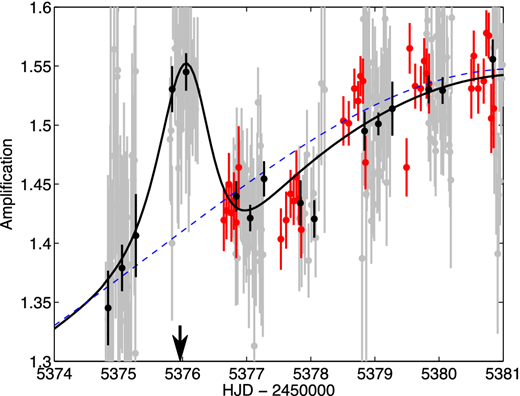

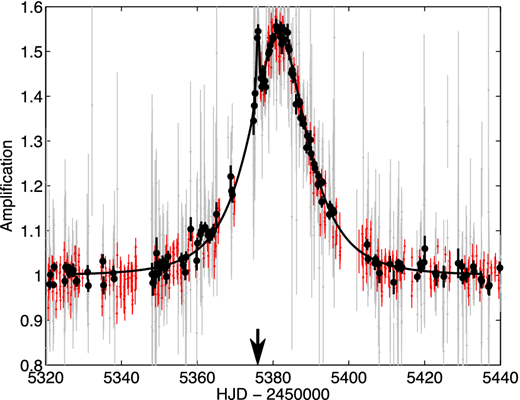

Lightcurve 1 of MOA-2010-BLG-353L Lightcurve 2 of MOA-2010-BLG-353L
Lightcurves of MOA-2010-BLG-353L [Rattenbury et al.(2015)]

Determine Parameters of the Underlying Stellar Event

Based on the microlensing light curve, figure out the following properties of the microlensing event:

Your answers
Time of the peak of the event = t0:
Change in magnitude = &#916m:
Maximum magnification = Amax:
Impact parameter = |u0|:
Magnitude at Half-Maximum =
Full Width Half Maximum = tFWHM:
Einstein Timescale = tE:





Parameters of the Planetary Event

1. Where is the planet?

Your answers
Time of the the planet perturbation = tplanet :
Time scaled to the Einstein timescale = τ = |tplanet - t0|/tE :
Source-lens separation = u = &#8730(u02 + τ2) :
y&#177 = &#177 (½) (&#8730(u2 + 4) &#177 u) :
Is the perturbation a major image (+) or minor image (-) perturbation?
Location of the planet = s :






2. What is the mass ratio between the planet and the star?

Your answers
Planet Einstein Timescale = tp,E ~ tFWHM :
Mass Ratio = q = (tp,E / tE)2:






Planet      q = Planet Mass/Sun's Mass
   Jupiter      10-3
   Neptune      5 x 10-5
   Earth      3x 10-6
Your answer
Is the planet more similar to Earth, Neptune, or Jupiter?


How well did you do?

Remember that these methods are approximate - they are used to find a good starting point for analysis. It’s important to remember that the approximation works less well as s–> 1.

IF the light curve is in magnitudes (rather than magnification): We’re assuming zero blending, i.e. that all the light that you see is from the source star. If there is some other (non-lensed) light blended with the light curve, then the true magnification is higher. How do your answers change if you assume that half of the baseline flux is due to a blend? What if 90% is due to a blend?
